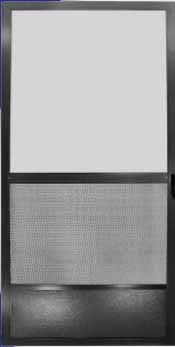

Swing Screen Door
Kaila Series

Sturdy and distinctive, the Kaila Series features your choice of anodized or powder coated finishes. The frame is made from heavy weight extruded aluminum.

The door’s design includes one 3" extruded aluminum push bar.

Aluminum spur corner locks give the door added strength and stability and unlike cast metal corner locks, they are immune from rust to assure years of trouble free service.

A heavy-duty adjustable pneumatic closer provides dependable operation over an extended period of use. Hinges with Oilite bushings are attached to expander with heavy duty aircraft quality rivets for smooth opening and long life.

For extra toughness and efficiency, the door includes a heavy-duty matching (anodized or powder coated) expanded grille and a bottom-adjust channel with a vinyl sweep for added insect protection.

• Quality Extruded Aluminum frame (2 1/8" x 3/4" x .050")provides durability and corrosion resistance
• Solid Aluminum Spur Corner Locks add stability and improve longevity
• Included Grille – matches door finish (anodized or powder coated) with tight mesh, helps to prevent screen tear-out or push through
• 12" High Kick Plate is anodized or powder coated (based on door finish)
• 3" Push Bars – made from extruded aluminum are attractive and add durability
• Choice of Colors: Clear or Dark Bronze Anodizing or White or Desert Sand Powder Coating.

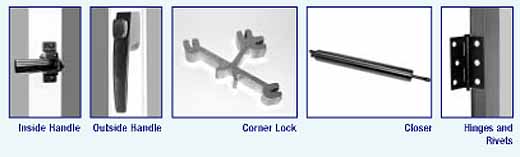

Includes All Hardware:
• Heavy-duty adjustable pneumatic closer
• Push button handles with manual lock and metal door keeper
• Hinges and expander
• Bottom adjust with vinyl sweep – helps to keep out insects

Choice of Finishes:
Anodizing – A hard and durable corrosion resistant protective surface, which enhances the
appearance of the extruded aluminum surface.
Powder Coating – Sometime known as powder painted, provides a much superior surface
compared to ‘wet paint’. It’s durable, corrosion resistant and environmentally friendly.
